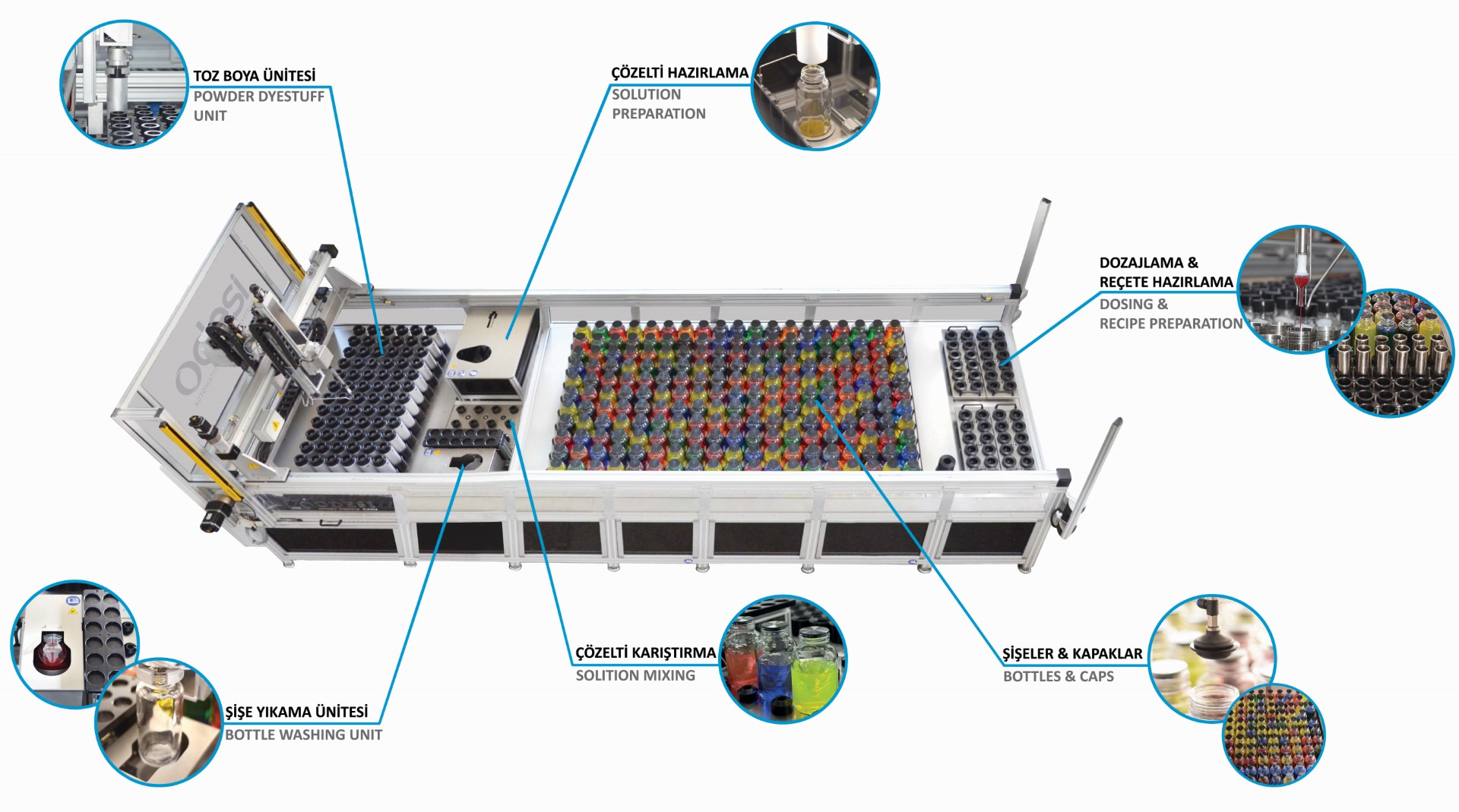

Full Auto Model

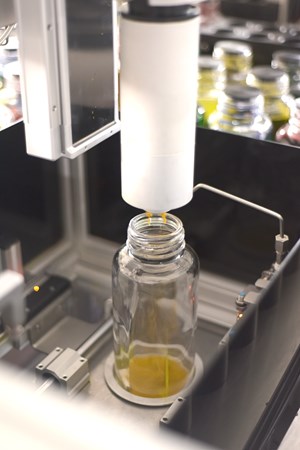

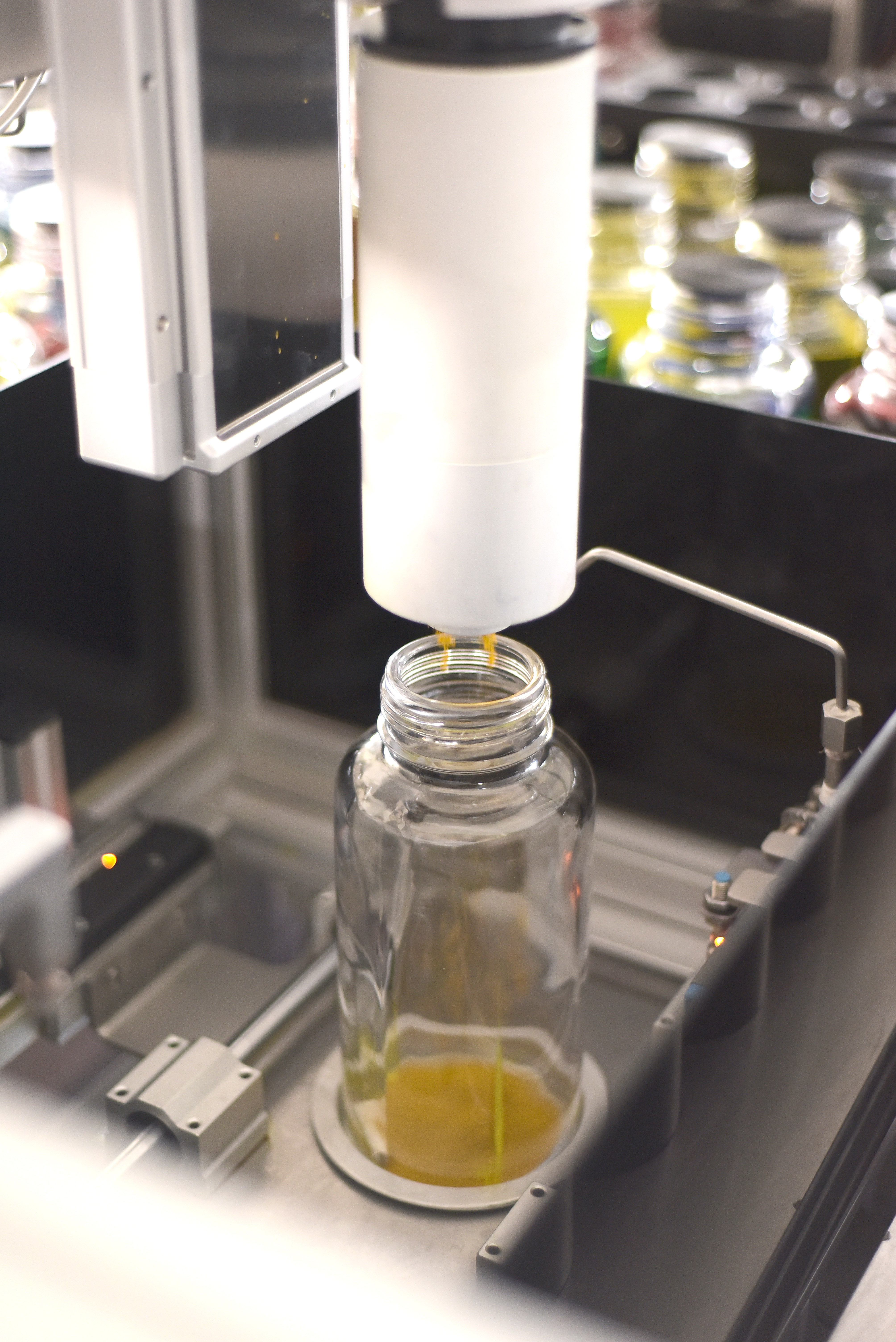

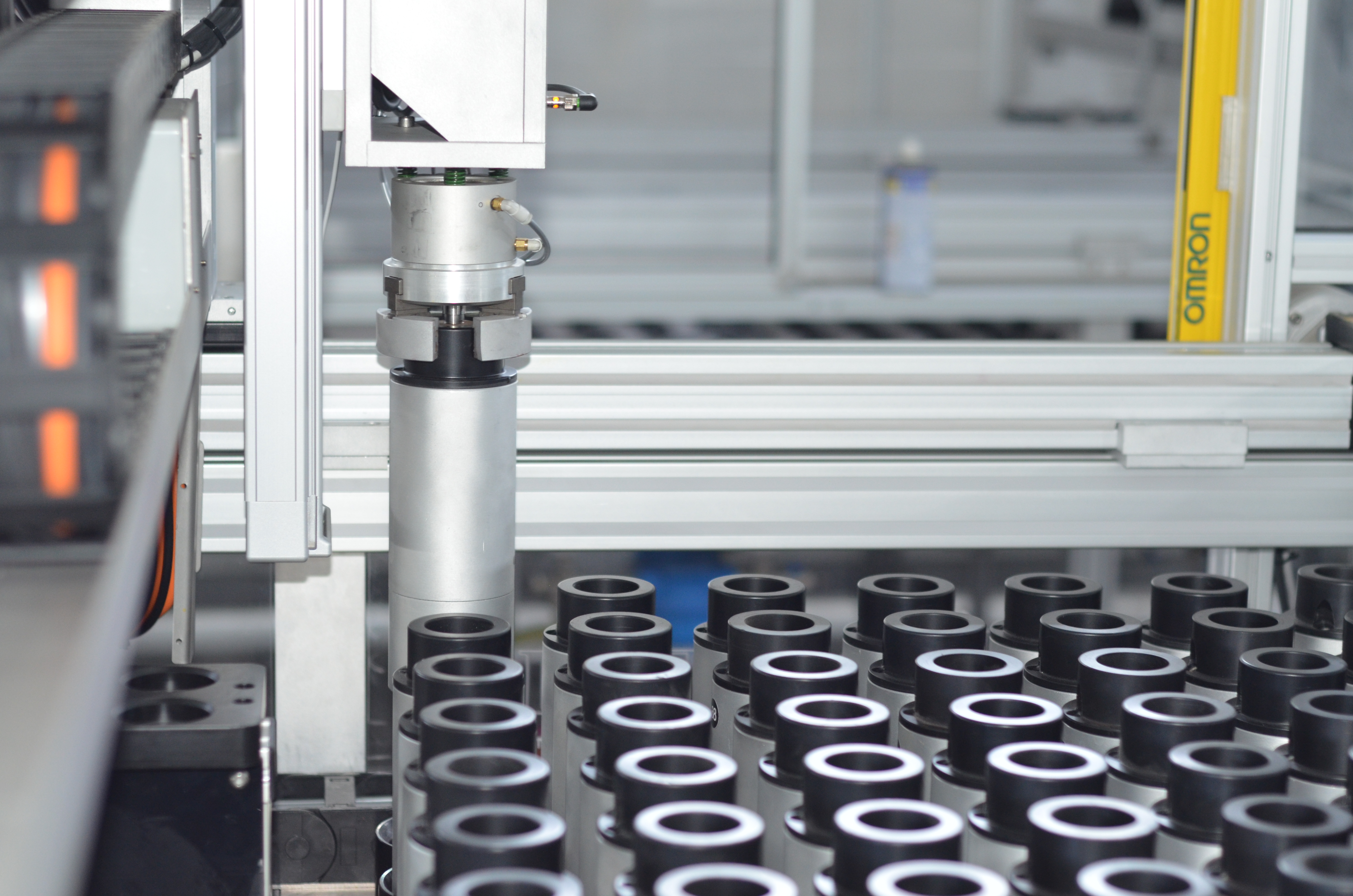

Pipetting Unit

  • Bottle Capacity Options: 120 / 168 / 204 / 240 / 276 / 312 bottles
  • Bottle Volume: 1,000 ml

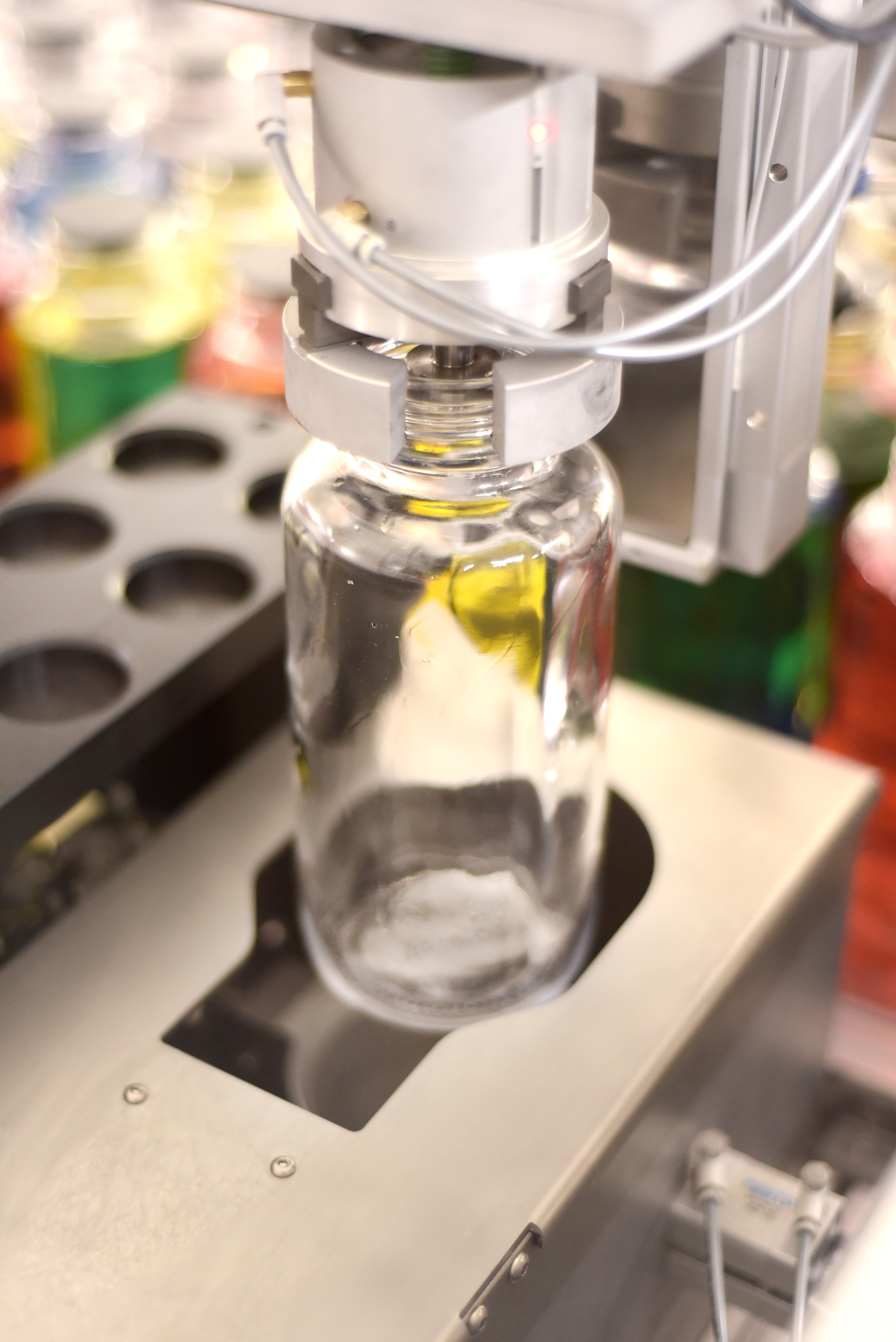

  • Automatic Cap Handling: Automatic opening & closing
  • Dosing Positions: 48 positions at a time
  • Dosing Accuracy: ±0.005 ml
  • Dosing Speed: Up to 80 recipes/hour. (Dyestuff, Chemicals, Salt, Soda Ash, Water Filling)
  • Min. & Max. Dosing Range: 0.2 – 55 ml
  • Calibration: Not required
  • Water Supply: 1 × Cold water inlet - 1 × Integrated hot water preparation unit
  • Motion Control System: 100% Servo Controlled
  • Lab-Dip Weighing Scale: 1 unit included
  • Safety System: Laser safety barrier

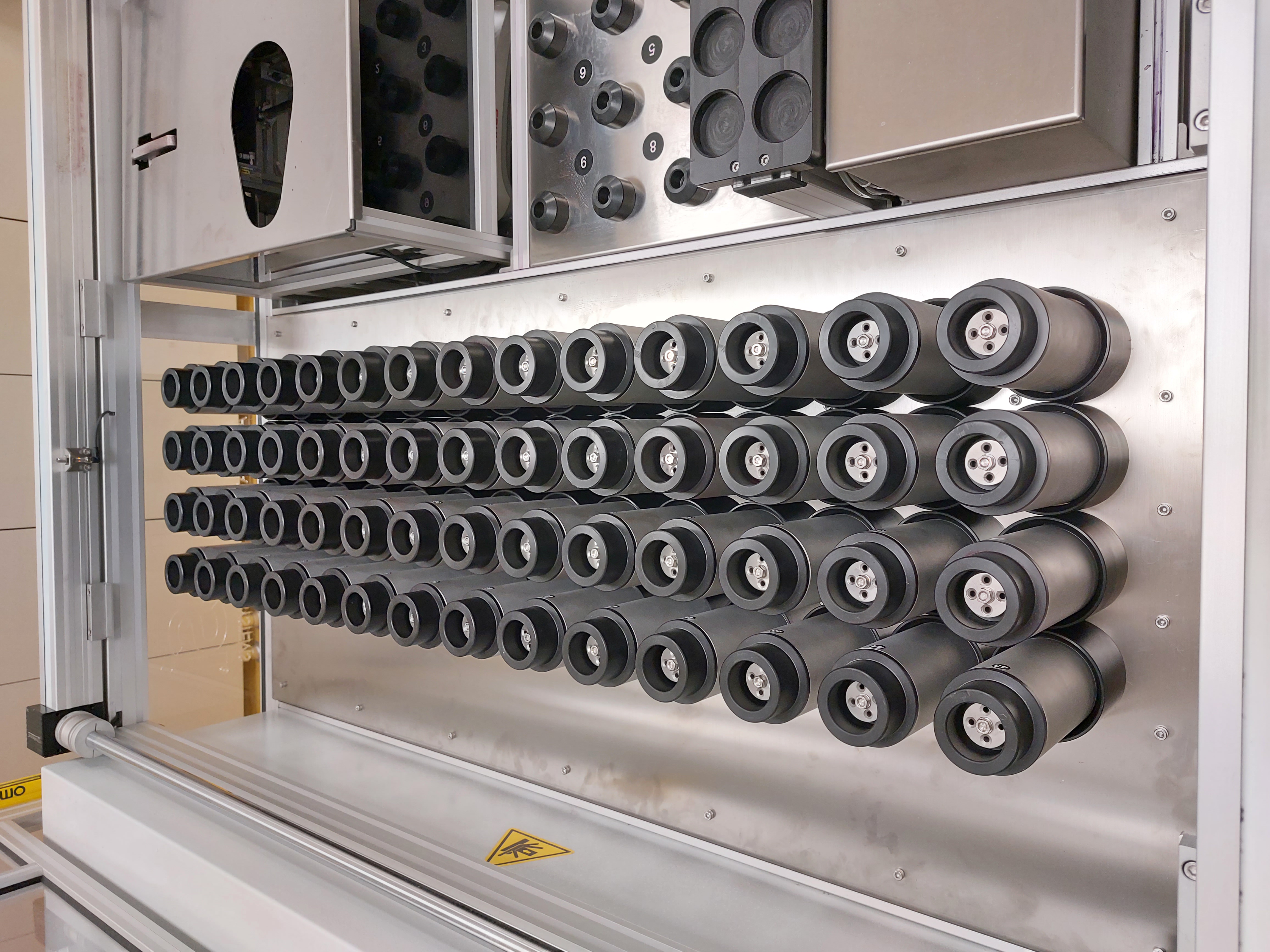

Automatic Solution Preparation & Powder Dye Storage Unit

  • Powder Dye Storage Capacity: 42 / 56 / 70 / 84 / 98 / 112 silos
  • Powder Dyestuff Weighing Scale: 1 unit included
  • Silo Capacity: 500 cc
  • Powder Dosing Accuracy: ±0.002 gr

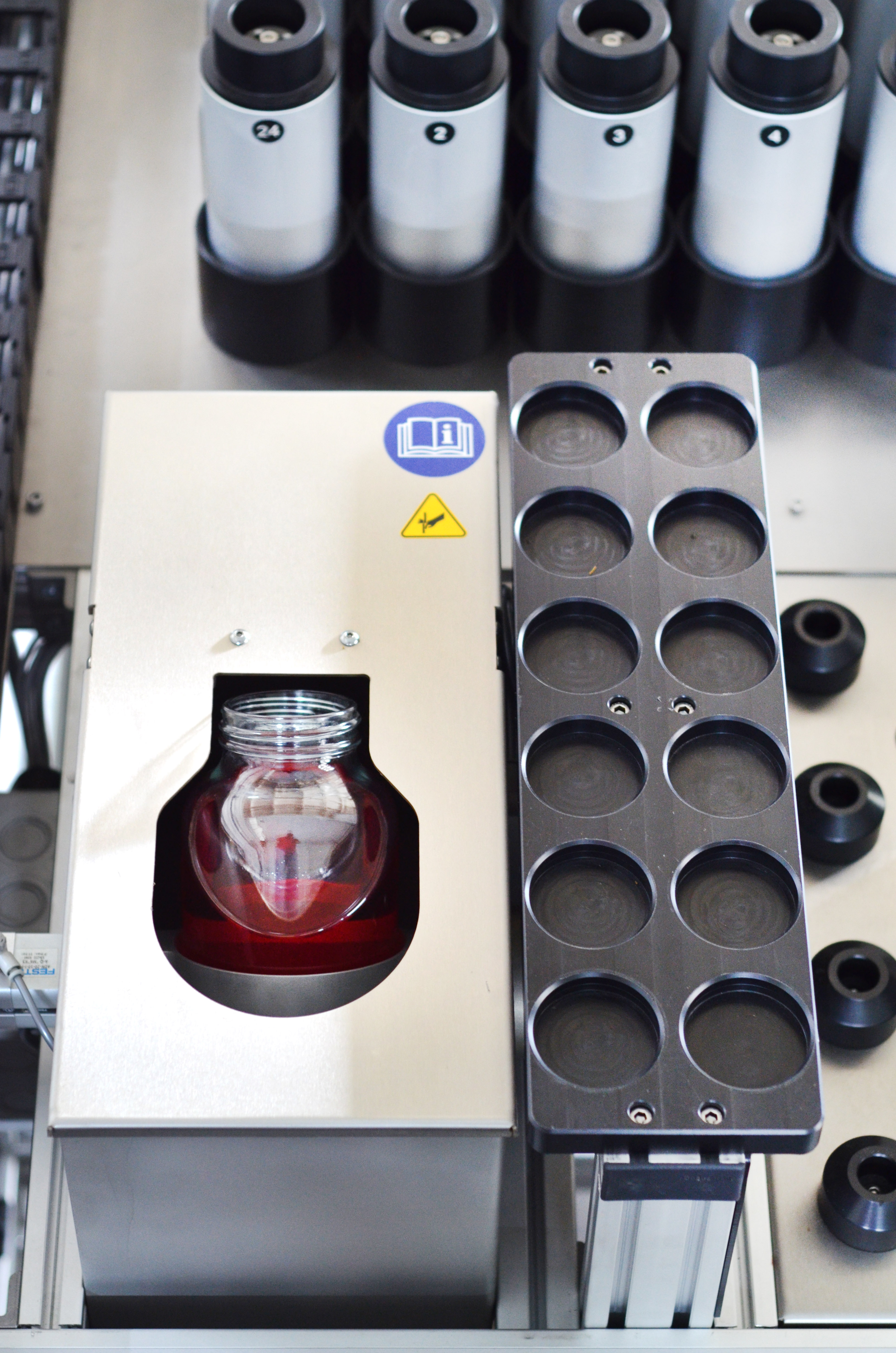

Bottle Washing Unit

  • Bottle Holder: Pneumatic system
  • Washing & Drying: High-pressure hot & cold water nozzles
